<P6 Series>
- Highlights of Product -
The P6 automatic reset series features an all stainless steel diaphragm and brass fitting or stainless steel fitting. The P6 is UL recognized for operating pressures of ≤ 800 PSIG

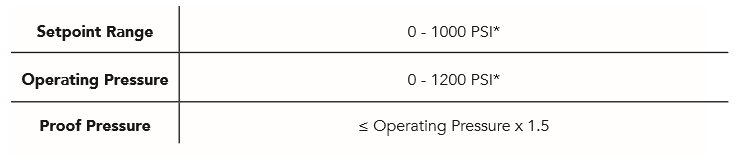

- Specification of P6 series -
Technical Specification
Material Specification
- Performance Chart of P6 series -
<P10 Series>
- Highlight Of P10 series -
The P10 Series incorporates an all-welded unit design eliminating leak paths, and the stainless steel exterior package enables this series for all-weather use. This series is a perfect switch for applications that require monitoring of cleaning agents and gases. Multiple fittings and electrical connections available for the P10 Series
- Specification of P10 Series -

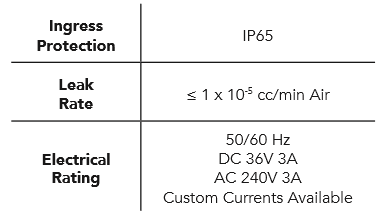

Technical Specification
Material Specification
- Performance Chart of P10 series -
<P11 Series>
- Highlight of P11 Series -
The P11 Series incorporates an allwelded unit design eliminating leak paths, and the stainless steel exterior package enables this series for all-weather use. This series is a perfect switch for applications that require monitoring of cleaning agents and gases. Multiple fittings and electrical connections available for the P11 Series
- Specification of P11 series -

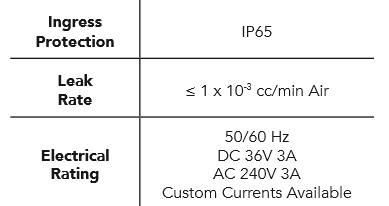

Technical Specification
Material Specification
Performance Chart of P11 Series
<SP 120 Series>
- Highlight of SP 120 series -
We’ve designed these switches for high purity applications such as the semiconductor equipment market. The SP120 Series does not contain any elastomer or O-ring. All switches are helium leak tested to ≤ 1 x 10-9 std cc/sec Helium per SEMI F1.
- Specification of SP 120 series-
Technical Specification

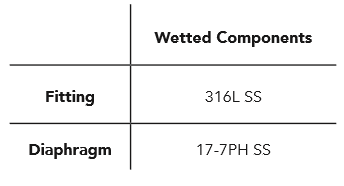

Material Specification
Performance Chart of SP 120 series
<UC8 Series>
- Highlight of UC8 series -
these switch is designed for highly corrosive environments found in next- generation semiconductor processing equipment. The UC8 series is rated for more than 2,000,000 95B2 application cycles The UC8 series has materials available that meet or exceed SEMI F20 (UHP) with a critical pitting temperature performance of > 35ºC. All switches are helium leak tested to ≤ 1 x 10-9 std cc/sec Helium per SEMI F1.
- Specification of UC8 series -
Technical Specification
Material Specification

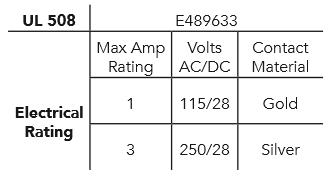

Electrical Specification
Temperature Specification
Performance chart of UC8 series
<UC9 Series>
- Highlight of UC9 series -
The UC9 Series incorporates an elgiloy diaphragm. This provides the series with superior corrosion resistance performance that is unmatched by other offerings in the market. The UC9 series incorporates Wasco’s proprietary manufacturing method and an all-welded construction which eliminates all leak paths.
This series is a perfect switch for systems that require sensing of corrosive media in a high accuracy, tight tolerance application.
- Specification of UC9 series -

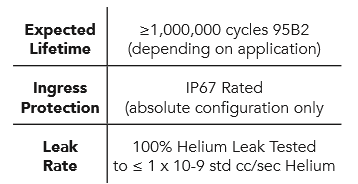

Technical Specification
Material Spcification
Electric Specification
Temperature Specification

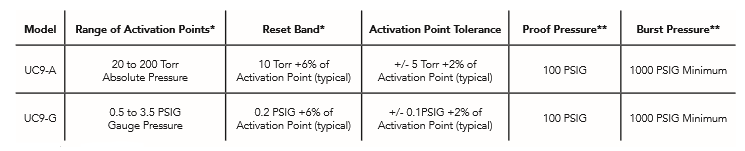

Performance Chart of UC9 series
<UHP 150 Series>
-Highlights of UHP 150 series-
We’ve designed these switches for ultra high purity applications such as the semiconductor equipment market.
The UHP150 Series does not contain any elastomer or O-ring.
All switches are helium leak tested to
≤ 1 x 10-9 std cc/sec Helium per SEMI F1.
The UHP150 Series is manufactured and packaged
inside an ISO 5 cleanroom.
-Specification of UHP150 series-
- Material specification -
- Technical Specification -
- Performance Chart of Product -
